CYZ series marine horizontal self-priming centrifugal oil pump manufacturer from China China Deyuan Marine Fitting Co.,Ltd

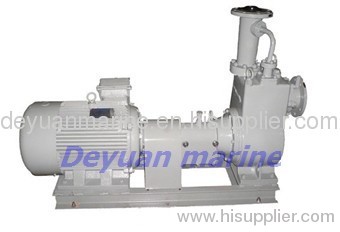

CYZ series marine horizontal self-priming centrifugal oil pump

Payment Terms:	T/T,L/C
Place of Origin:	Chongqing, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Means of Transport: Ocean

Delivery Date: 7 DAYS

Packing: WOODEN CASE

Oil Pump:
1) pumping lubricating oil
2) OEM service.
3) competitive price.
4) advanced techniques.

marine horizontal self-priming centrifugal oil pump

China Deyuan Marine Fitting Co.,ltd are leading supplier of marine pumps,such as marine diesel emergency fire pump,vortex marine water pump,marine centrifugal water pump etc.Pls contact us for more details.

CYZ series marine horizontal self-priming centrifugal oil pump are used at boats and ships transport petrochemicals such as petrol,coal oil and diesel oil.The temperature of medium can be between 20 degrees below petrochemicals such as petrol,coal oil and diesel oil.The temperature of medium can be between 20degrees below zero and 80degrees. This series pump is a high quality marine cargo oil pump,it also be suitable oil transport to the land oil tanker and oil tanker car and so on.It is able to carry seawater and fresh water less than 80degrees.When used non-corrosive mechanical seal it can be transport chemistry liquid.

The pump rotates anticlockwise viewed from motor.

Type	(50HZ,3phase,380v) main technical parameter					Motor power(kw)
Type	Capacity (m3/h)	Head (m)	Speed (r/min)	NPSHR (m)	Shaft power(kw)	Motor power(kw)
40CYZ-20	6.3	20	2900	3.5	0.80	1.1
40CYZ-25	6.3	25	2900	3.5	1.07	1.5
40CYZ-32	6.3	32	2900	3.5	1.48	2.2
40CYZ-40	6.3	40	2900	3.5	1.96	3
50CYZ-25	12.5	25	2900	3.5	1.70	2.2
50CYZ-32	12.5	32	2900	3.5	2.37	3
50CYZ-40	12.5	40	2900	3.5	3.16	4
50CYZ-50	12.5	50	2900	3.5	4.15	5.5
65CYZ-25	25	25	2900	4	2.79	4
65CYZ-32	25	32	2900	4	3.75	5.5
65CYZ-40	25	40	2900	4	4.87	5.5
65CYZ-50	25	50	2900	4	6.55	7.5
65CYZ-63	25	63	2950	4	8.76	11
80CYZ-25	50	25	2900	4	5.20	7.5
80CYZ-32	50	32	2950	4	6.77	11
80CYZ-40	50	40	2950	4	8.59	11
80CYZ-50	50	50	2950	4	11.27	15
